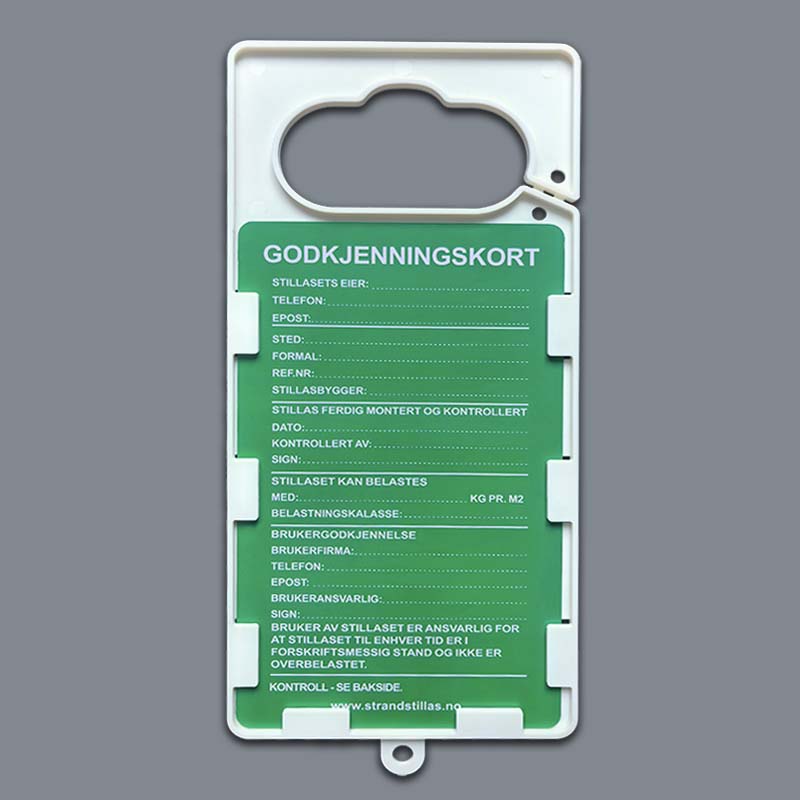

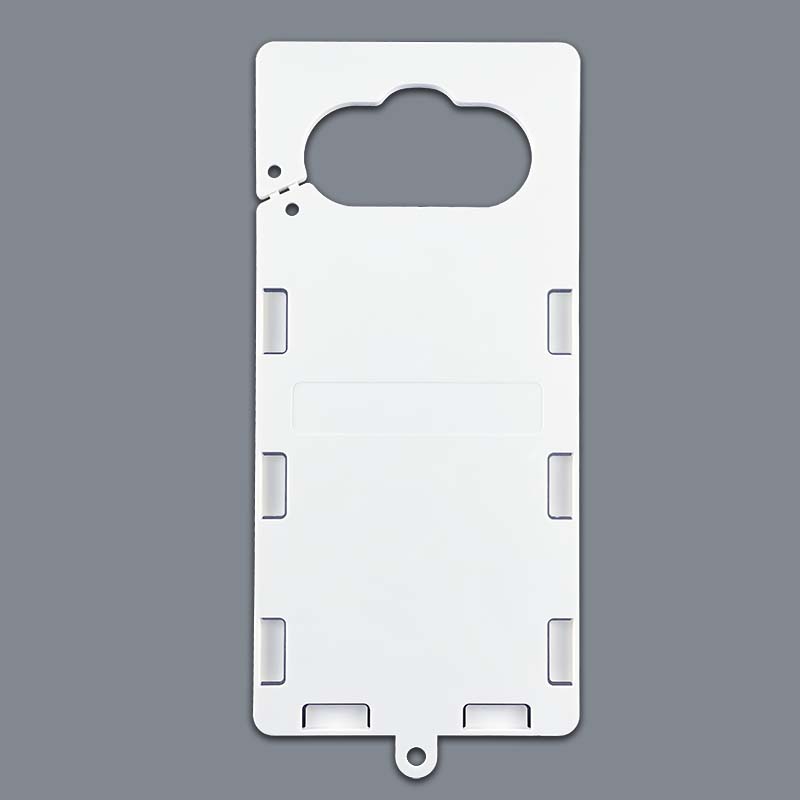

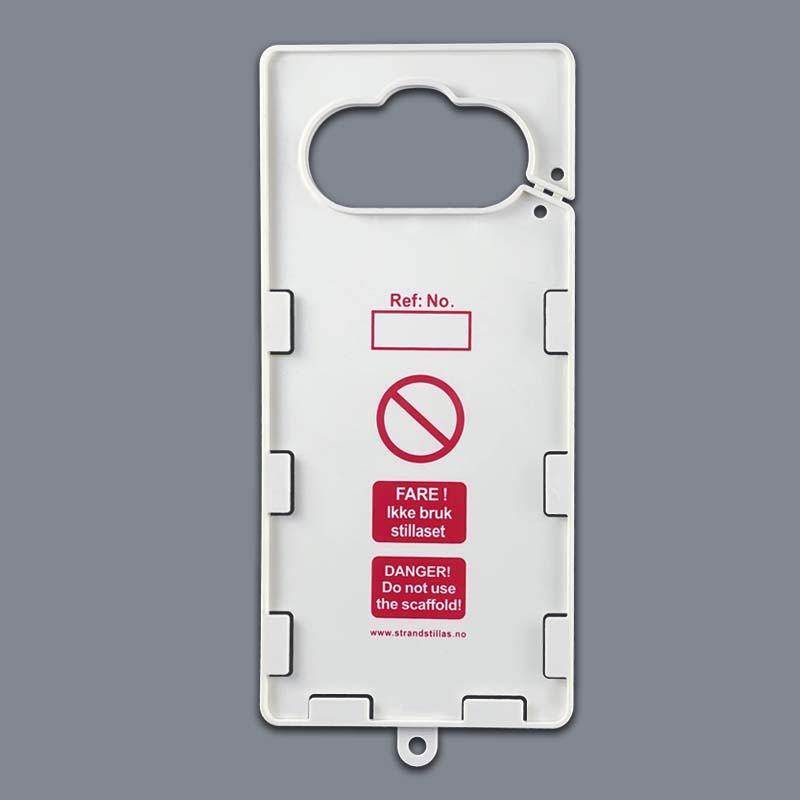

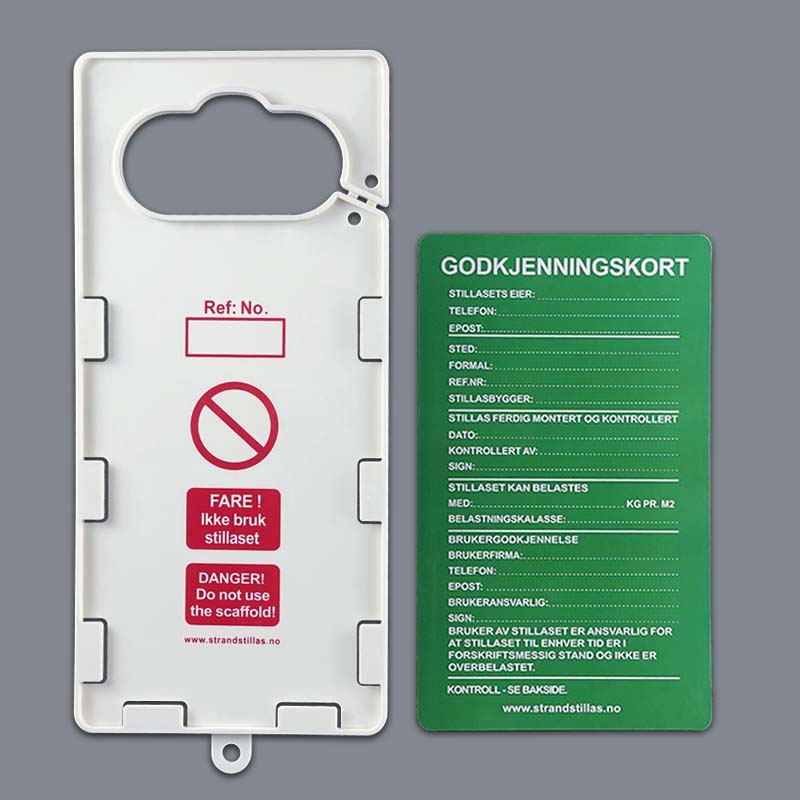

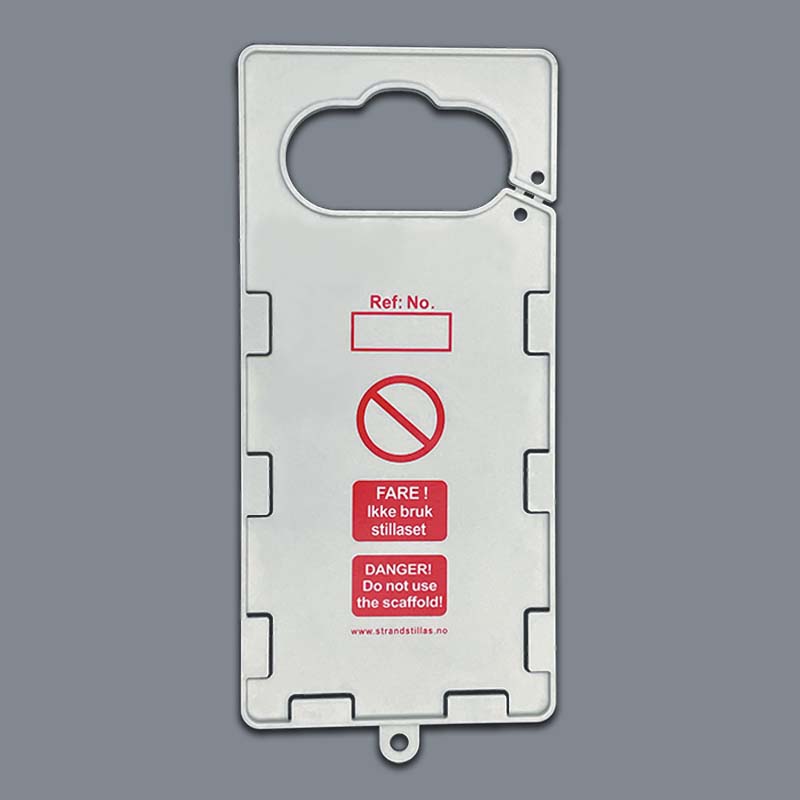

Industrial-Grade PVC Label Tags – The Ultimate Identification Solution for Harsh Environments

Product Specifications:Dimensions: 310mm (H) × 90mm (W) with 197mm × 83mm printable areaMaterial: 1.5mm (±0.05mm) high-density PVC compositeTemperature Range: -40°C to +95°C continuous operationWeight: 85g per unit (including mounting hardware)Advanced Material Technology:

Our proprietary PVC formulation combines:Military-grade UV stabilizers (10-year outdoor warranty)Impact modifiers for extreme durabilityChemical-resistant additives (withstands oils, acids, and solvents)Anti-static properties (106-108 Ω surface resistance)Optional flame-retardant version (UL94 V-0 certified)Precision Manufacturing Process:Computer-controlled material compounding (±0.3% tolerance)Precision calendering to 1.5mm thickness (±0.02mm)CNC routing with laser positioning (±0.05mm accuracy)Automated edge finishing (0.1mm radius)100% automated optical inspection (AOI system)Performance Characteristics:PropertyTest StandardResultTensile StrengthISO 52762 MPaFlexural ModulusISO 1783,000 MPaImpact ResistanceISO 179No breakWeather ResistanceASTM G1546,000 hoursChemical ResistanceISO 2812Pass 20 reagentsCustomization Options:

Printing Technologies:High-resolution UV digital printing (2400×1200 dpi)8-color screen printing (Pantone® matched)Laser engraving (0.02-0.5mm depth control)Thermal transfer for variable dataSurface Treatments:Matte (60° gloss) or glossy (90° gloss) finishTextured anti-slip surfaceAnti-microbial coating (ISO 22196 compliant)Conductive coating (EMI shielding available)Special Features:Embedded RFID/NFC (13.56MHz or UHF)QR code/Data Matrix integrationTamper-evident security featuresPhotoluminescent borders (ISO 17398 compliant)Mounting Systems:3M™ VHB adhesive backing (4920 series)Rare earth magnetic mount (N52 grade)Stainless steel eyelets (M4 size)Cable tie slots (5mm width)Quality Assurance:Daily material batch testingSpectrophotometric color control (ΔE<1.5)Dimensional verification (0.01mm accuracy)100% functional testingTraceability throughout productionIndustry Applications:

Heavy Industry:Chemical plant equipment labelingHigh-temperature asset identificationExplosive environment markingPower generation facility signageCommercial Use:Retail shelf edge labelingWarehouse management systemsOffice equipment trackingAsset management solutionsSpecialized Markets:Marine and offshore applicationsCleanroom and laboratory environmentsFood processing equipmentMilitary and defense systemsCompliance & Certifications:ISO 9001:2015 certified manufacturingRoHS 3 (2015/863/EU) compliantREACH SVHC testedBS 5609 Section 3 (marine approval)ADA compliant versions availableOrdering Information:

Standard Options:Minimum order: 50 piecesStandard lead time: 5 working daysPackaging: 25 units per protective trayPallet quantities: 2,000 unitsValue-Added Services:Free CAD template filesDesign for manufacturability reviewRegulatory compliance guidanceJust-in-time inventory programsEnvironmental Profile:30-50% recycled content100% recyclable (SPI code 3)Low-VOC manufacturing processCarbon offset options availableWhy Industry Leaders Choose Us:

"After extensive testing in our offshore oil platforms, these PVC tags maintained perfect legibility after 3 years of saltwater exposure, while metal tags corroded within months." - Global Energy Company
